Description du produit

* AIS Compatible

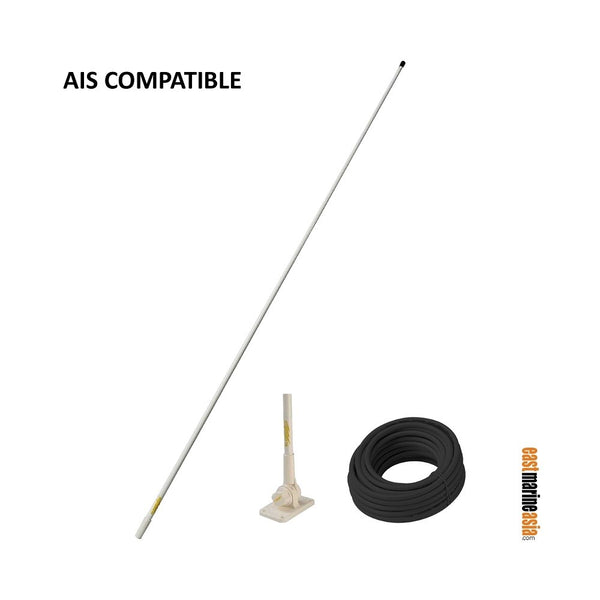

Supergain Capri is a 3db gain VHF antenna, 1.4 m length designed for powerboats, workboats etc.  It is lightweight and very easy to be installed everywhere, thanks for the white integrated ratche mount.  With brass and copper elements protected by a strong white fibreglass tube and integrated 6 m (20’) RG58C / U coax cable, it is the best value for money.


Electrical specifications

  • Frequency range: 156.0 - 162.0 Mhz
  • Gain average: 3 dB
  • Impedance: 50 ohms
  • Polarisation: Vertical
  • SWR: =< 1.4 at 156.8 Mhz
  • Max input power: 50 W
  • DC Ground: Yes
  • Antenna length: 1.4 m (4.5 ft)
  • Antenna weight: 230 g (8.1 oz)


For more information, please refer to Product Data Sheet.
