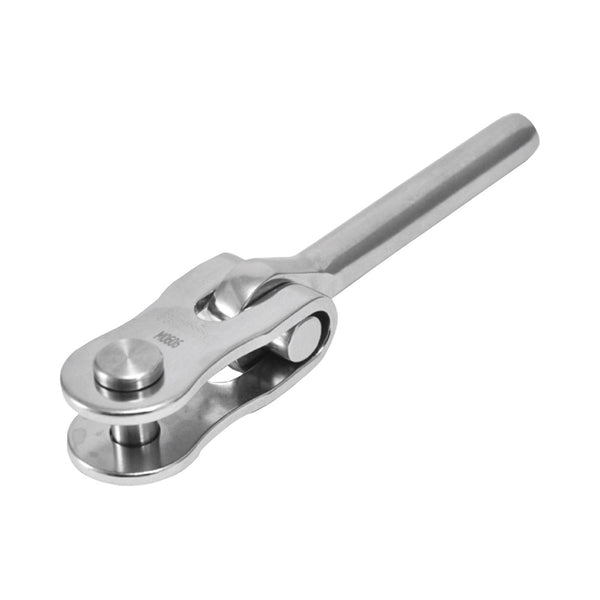

Hamma Regatta Swage Toggle

Hamma Regatta Swage Toggle

฿960
En stock, expédié sous 24 heures
To pre-order this variant call +66 (0) 76 239 113 or contact us:

Nom de famille:*

Email:*
Numéro de téléphone:
Message: *
* Champs obligatoires
Looking for wholesale pricing & volume discounts? Become a dealer! »»
Description du produit

Use Option (1) to select Cable Size and then Option (2) to select Pin Size

hamma? Regatta Swage Toggles has been designed to match the extreme high performance of the hamma? X and hamma? Pro cables.

Features
- Marine grade 316 stainless steel
- High corrosion resistance
- Aesthetically pleasing
- 30% higher breaking strength to meet and exceed hamma? Pro Strand
- Swage toggle plate articulates, therefore reducing the impact of vibrations on the wire rope



Cable Size Pin Size MBS (kgf) MBS (kN)
4.0 mm 5/16"       2,400        23.5
5.0 mm 5/16"       2,400        23.5
5.0 mm 3/8"       3,600        35.3
6.0 mm 3/8"       3,600        35.3
6.0 mm 7/16"       5,000        49.1
6.0 mm 1/2"       6,800        66.7
7.0 mm 1/2"       6,800        66.7
8.0 mm 1/2"       6,800        66.7
8.0 mm 5/8"     10,900      106.9
9.0 mm 5/8"     10,900      106.9
10.0 mm 5/8"     10,900      106.9
12.0 mm 3/4"     15,900      156.9
14.0 mm 7/8"     21,500      212.9
16.0 mm 1"     28,300      277.6
5/32" 5/16"       2,400        23.5
3/16" 5/16"       2,400        23.5
3/16" 3/8"       3,600        35.3
7/32" 3/8"       3,600        35.3
1/4" 7/16"       5,000        49.1
1/4" 1/2"       6,800        66.7
9/32" 1/2"       6,800        66.7
5/16" 1/2"       6,800        66.7
5/16" 5/8"     10,900      106.9
3/8" 5/8"     10,900      106.9
7/16" 3/4"     15,900      156.9
1/2" 7/8"     21,500      212.9
5/8" 1"     28,300      277.6
