Please contact us (sales@eastmarineasia.com ) or use the form above for price quote.
*** Worldwide drop-ship directly from factory ***
Please include information like your intended voltage (or hydraulic type) and size of your chain.

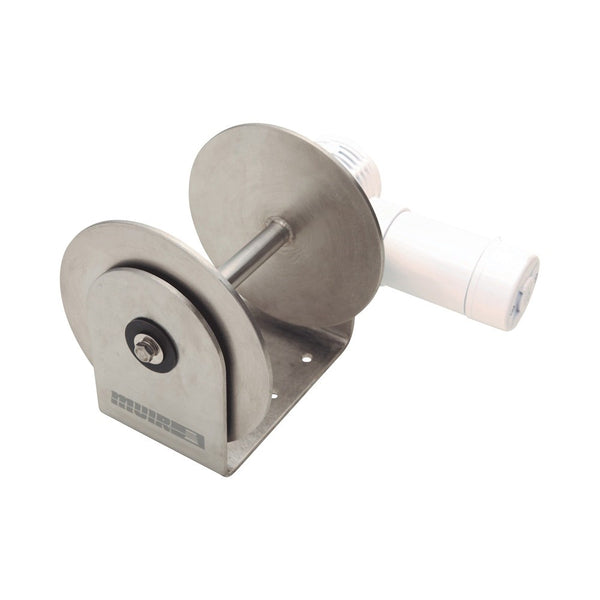

Muir DW15 Power / DFF15 FreeFall Drum Winches
- Muir’s patented Auto Free Fall, Power Up & Power Down, or Manual Release Free Fall are all available to you on the 1 unit!
- Mechanical Auto & Manual Release Free Fall means no troublesome electronics need to be mounted on the Drum or in your chain locker.
- Drum Shaft on a serviceable bearing centre for smooth hassle-free operation
- even under full load.
- Muir’s designed HDPE & UV protected Heavy Duty Brake means no over-run of the Drum during Free Fall.
- All Muir Free Falling Drum Winches are supplied with Circuit Breaker, Reversing Solenoid Pack, Helm Control Switch and Fascia Panels, plus, Simple Tools & Hardware for an easy 30 second adjustment from Auto Free Fall; to Manual Free Fall and Power Up Power Down options!
- Installation Instructions and Service Manual provided and backed by Muir’s 3-year limited warranty!
- Anchoring made easy, fast, and reliable with a Muir Drum Winch.
- No electronic components to fail.
- Larger Drum capacity than other Free Falls on the market.
- Does not require any more space than the standard Drum Winch
Vessel Length |
12 - 14 m (40 - 47 ft) |
Power Supply |
12 / 24 Vdc |
Motor |
1500 W |
Max Load |
390 kg at 8 m/min (860 lb) |
Work Load |
112 kg at 33 m/min |
Max Line Speed |
33 m / min |
Chain Size |
10 - 12 mm (3/8 - 1/2”) |
Rope Size |
12 mm (1/2)” |
Net Weight |
DW 35 kg
DFF 37 kg
|
Capacity (Drum) |
100 m of 8 mm line or 80 m of 10 mm line + 6 m of 8 mm chain |
